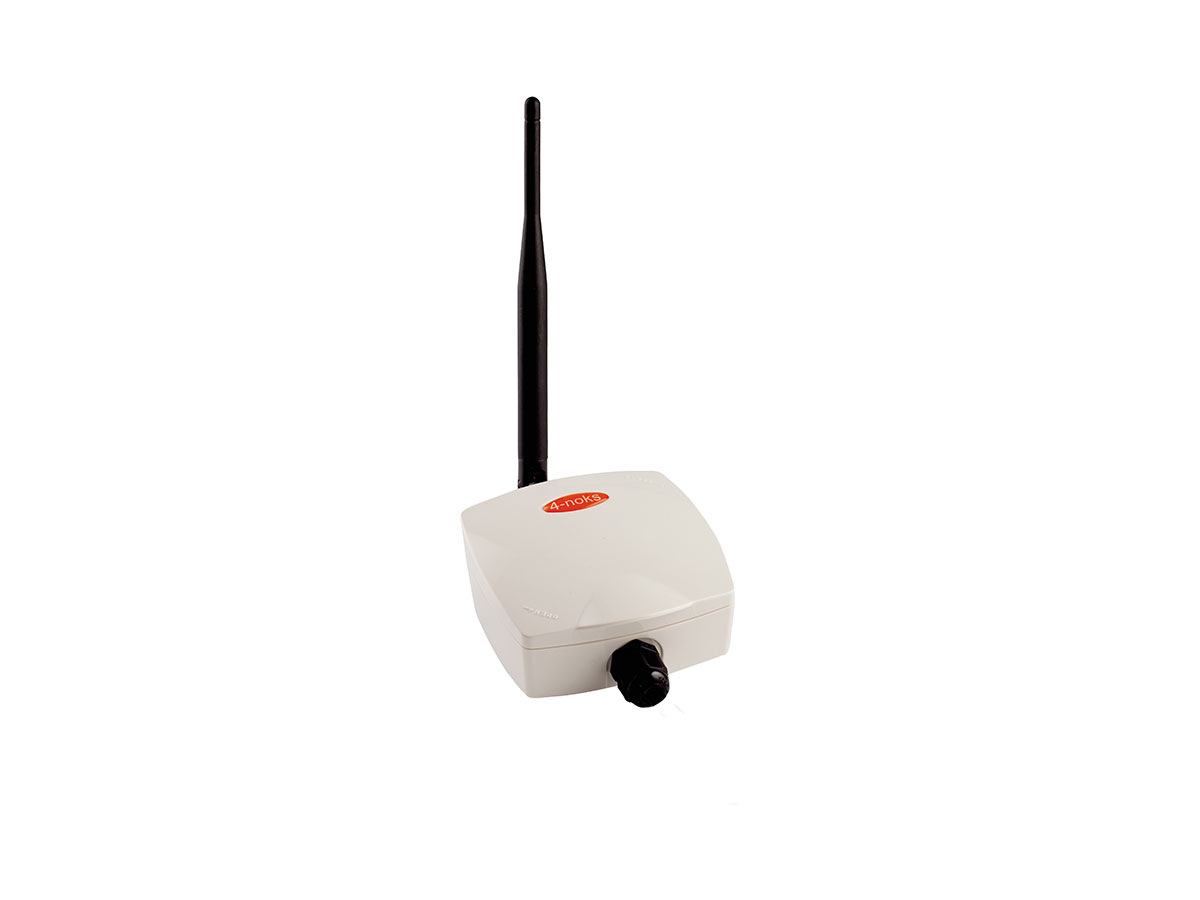

Radio Repeater RC

Radio Repeater for RC (Radio Control) product family

SKU: ZR-REP-E230RC. Categories: , .

Product Description

How it works

The Radio Repeater is a device forming part of the RC (Radio Control) product family. Its function is to increase the radio range of RC devices (Smart Plug RC, Smart Switch RC, Energy Meter RC, Power Reducer RC), thereby allowing the signal to carry through obstacles or over long distances and maintain radio traffic to and from devices of the same family. The device can be powered from an external source (as per specifications).

Minimum requirements

Compatible products

Technical specifications

General Specifications ZigBee Home Automation Radio Repeater
Zigbee profile Home Automation (HA) 1.2
Power supply 90÷250Vac; 50÷60Hz
Power consumption <10W
Ambient parameters Operating conditions: -10 to +60°C; <80% R.H., non-condensing
Storage conditions: -20 to +70°C; <80% R.H., non-condensing
Degree of protection IP51
Antenna connector RP-SMA connector
Dimensions (L x H x D) 123 x 100 x 42 mm (without antenna)

Download

Radio Repeater RC Instruction manual IT-EN-FR-DE - 10.05.2019 - cod. +05T408631R3.1
Radio Repeater RC Instruction manual IT-EN-FR-DE - 10.05.2019 - cod. +05T408631R3.1 (690.9 KB)
