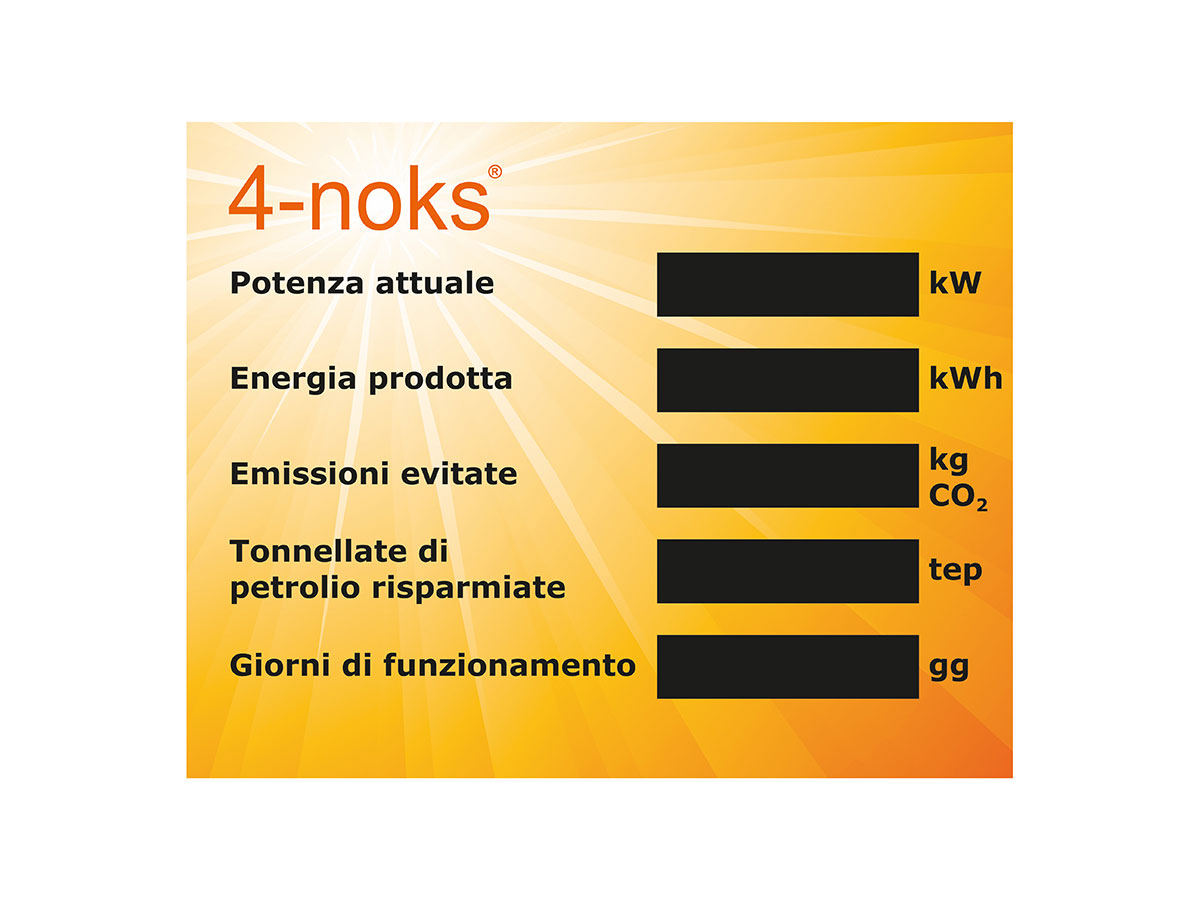

  • DSG-100-80-PB-neutro

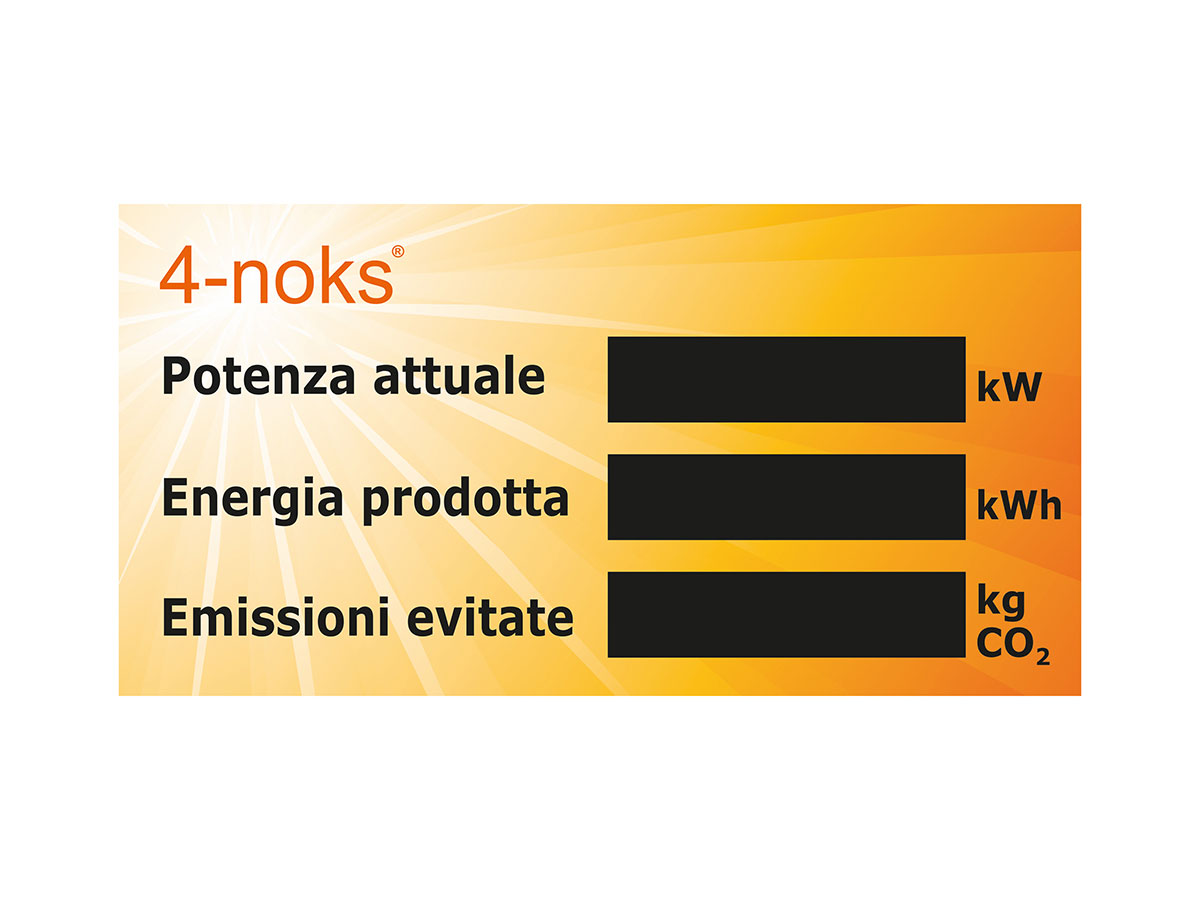

  • DSG-85-45-PB-neutro
  • DSG-xx-xx-Schema-01-IT

Giant Display

Share and sensitize

SKU: DSG. Categories: , , .

Product Description


Key features

  • Radio connected (wireless)
  • Displays in giant format:
    • actual power in kW
    • energy produced in kW/h or Mw/h
    • CO2 emissions saved in kg or t
  • Usable in public offices, schools, malls, organizations, …
  • Customizable with personal logos and pictures
  • Version for either indoor or outdoor use with dimensions:
    • 3500 x 1500 x 90 mm
    • 1400 x 721 x 90 mm
    • 1000 x 800 x 90 mm
    • 850 x 450 x 90 mm
  • Version for indoor use with dimensions:
    • 715 x 1700 x 283 mm (with free standing totem)
  • Optional accessory


How it works

A useful accessory for sharing your PV system’s production data and raising awareness of the environmental contribution of the clean energy produced by it. Our Giant Display is available indoor (Design) and outdoor versions. The display offers a range of viewing options and can be customised with your own logos and graphics. The display shows power produced, energy produced and CO2 emissions saved.


Technical specs

Dimensions 850 x 450 x 90 mm 3 rows 1000 x 80 x 90 mm 5 rows 1400 x 900 x 90 mm 3 rows + date/time
Use Outdoor Outdoor Outdoor
Numbers of digit 5 kW, 6 kW/h, 6 CO2 5 kW, 6 kW/h, 6 CO2 5 kW, 6 kW/h, 6 CO2
Consumption 35 Watt 17 Watt 17 Watt
Weight 12 kg 19 kg 19 kg
Max reading distance
 50 m 25 m 15 m
IP protection
 IP54 IP54 IP54
Digit height
 62 mm 120 mm 62 mm
